Containerized Power Supplies

Many novel projects and start-ups are faced with requirements for expensive infrastructure to house equipment, or require power supplies that can be relocated. To address these challenges, Ampegon has developed solutions to provide flexible self-contained power supply systems. Whether there is insufficient space inside existing buildings for a new power supply,  no building exists, or there’s a need for a system to be continuously mobile, Ampegon has experience providing such solutions. This allows systems to be fully tested in the factory, and are then “Plug-n-Play” ready upon delivery.

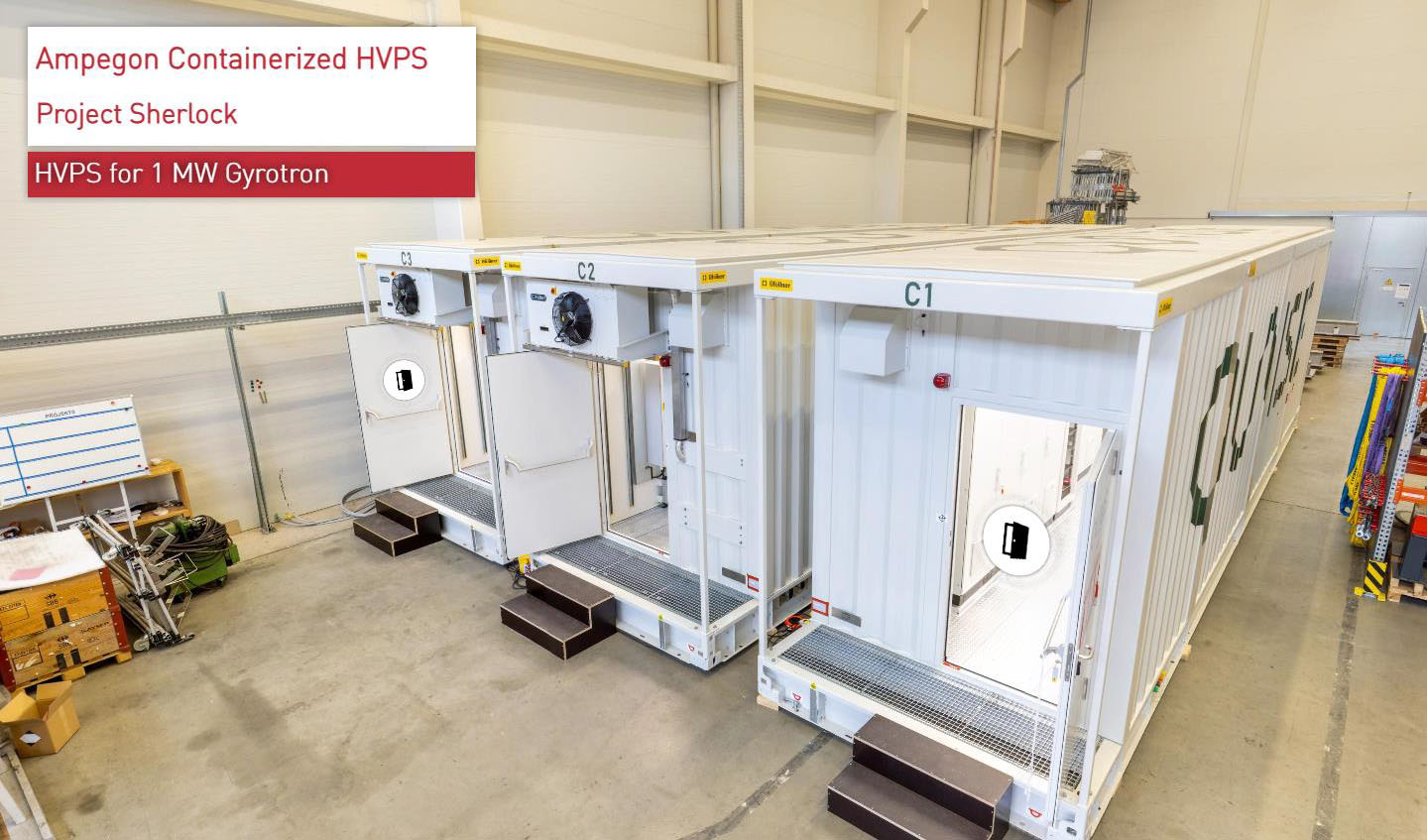

With fully integrated systems mounted in intermodal containers, built to meet any size requirement, your power supply can be designed to be easily transportable. Use of ISO-6346 container standards allows maximum flexibility. Power supply comes from a cable connection to the grid, or from suitable generators, at low or medium voltages. A wide range of high voltage, CW DC, pulsed or modulated waveform outputs can be provided. The entire system is made to be entirely weatherproof.

Power supplies <300kW can be mounted in only a single 40ft container, while greater powers can be achieved in multiple containers and connected upon delivery. Depending upon specifications, containerized power supplies may be stacked, or located side-by-side. Setup and testing or shut-down and packing can be achieved within a matter of days.

Each containerized power supply design can be customized include various options in addition to the power supply components: Typically these include an isolated high voltage deck, auxiliary systems, user interface and control system, and even office space for users, all within a climate conditioned environment to ensure safe and reliable operation regardless of the weather conditions outside.
